Multi-channel laser diode driver – CW or Pulsed – up to 8 channels

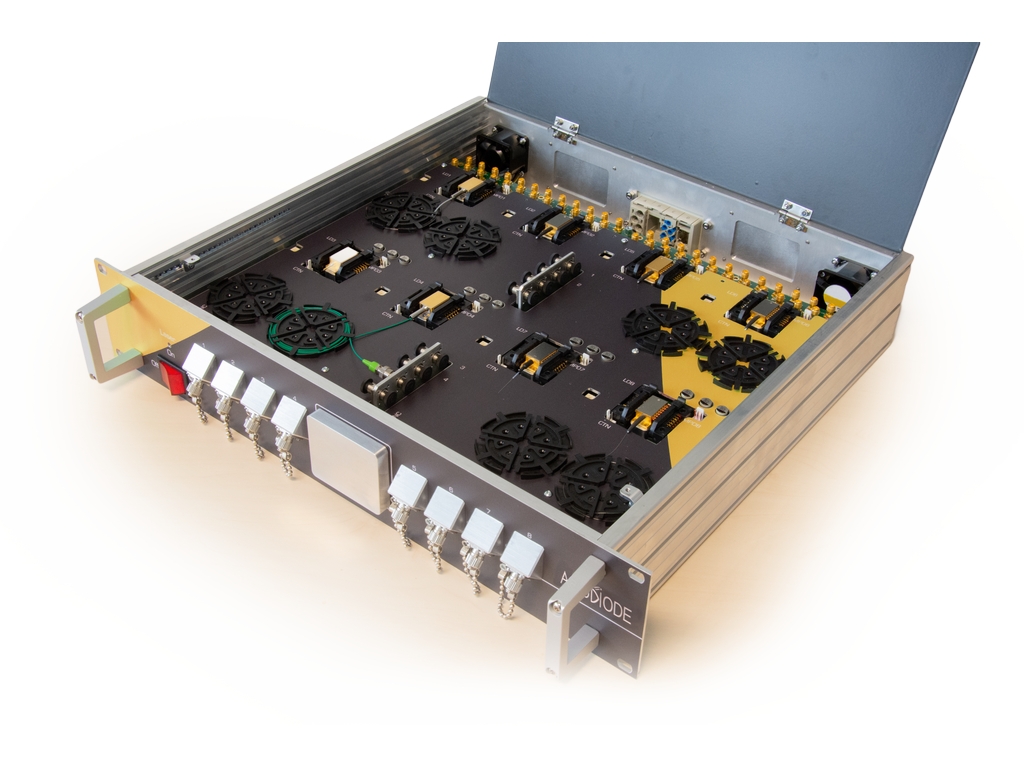

This laser diode driver & temperature controller allows full independent control of up to 8 laser diodes from CW down to very short pulses. It includes several functions including a pulse generator and a very low noise current and modulation driver.
This multi-channel laser diode driver is a precision module able to drive simultaneously and independantly several laser diodes in any operating regime. The current level ranges up to 4 A in pulse regime and 2.5 A in CW with a current resolution down to 0.05 mA.
Whereas it is dedicated for fiber coupled laser diodes, it is compatible with any type of laser diode form factor.
The performances of this laser diode driver have been optimized to be compatible with many applicative constraints in term of noise, ripple, resolution, current and temperature ranges, Jitter etc.
It is controlled by an easy-to-use graphical interface and contains more than 6 connectors per laser diode for various external analog input/outputs.
These products are now offered by AeroDIODE,
a new ALPhANOV spin-off company. The product manager is available to answer any technical of commercial question.
Product references: Multidiode-2 ; Multidiode-4 : Multidiode-8
Key features
-
From CW (Continuous Wave) down to 1 nanosecond pulse width
-
Ultra low noise and ripple
-
Full independant control of
-
CW/Pulse duration,
-
Peak/CW powers,
-
Pulse rep rate,
-
Compliance voltage,
-
Pulse overshoot,
-
Chip temperatures…
-
-
Zero insertion force mounting sockets for any Butterfly or others (TOSA etc.)
-
Fiber management with optical power sink
-
Several photodiode inputs for full optical power control when needed
-
Analog voltage signal remote controls and USB interface
The GUI software lets the user have total control of all module functions. It includes several libraries for software integration (Labview VIs, DLLs, Hexa, Python etc.).
Datasheet
This laser-diode-driver works alone or in series with other products in our range like:
- Laser driver
- Low noise laser diode driver
- Pulsed laser diode driver
- 808 nm laser diode
- 915 nm laser diode
- 976 nm laser diode
- 980 nm laser diode
- 1064 nm laser diode
- 1550 nm laser diode
- Laser reliability test system
- Fiber coupled AOM
Complex systems, such as Multidiode gas sensing or Multidiode imaging, can be quickly developed with this laser diode driver platform. This laser diode driver product is part of our "Multiboard" laser driver and synchronization modules family.
Specifications
| Product | Centrale 2 independant channels |
Multidiode-4 4 indepedant channels |
Multidiode-8 8 indepedant channels |
| Number of Channels | 2 | 4 | 8 |
| Current range (CW) | 0 - 1500 mA (ch.1) / 800 mA (ch.2) |
0 - 2500 mA | |
| Current range (pulsed peak current) | 0 - 3500 mA | 0 - 4000 mA | |
| Laser drive current setpoint accuracy | From 0.05 to 0.5 mA | ||
| Laser drive current stability | <0.1 mA | <0.01 mA | |
| Compliance Voltage (adjustable) | <5 V | 1 - 24 V (user adjustable) | |
| Pulse duration | 1 ns to CW | ||
| Pulse repetition rate | 0 - 200 MHz | 0 - 250 MHz | |
| Pulse overshoot (adjustable) | - | Down to 0% | |
| Diode chip temperature range (°C) | 10 - 55 | 0 - 90 | |
| BFM/Ext photodiode measurement | Yes(option)/Yes (up to 6) | Yes/Yes (1per diode) | |
| Adj. CW offset in pulse regime | Yes | Yes | |
| Internal/external current modulation | No | Yes | |
| Dimensions (mm) | 210*123*36.5 | 2U -19 ’’ Rack; depth: 400 mm | |

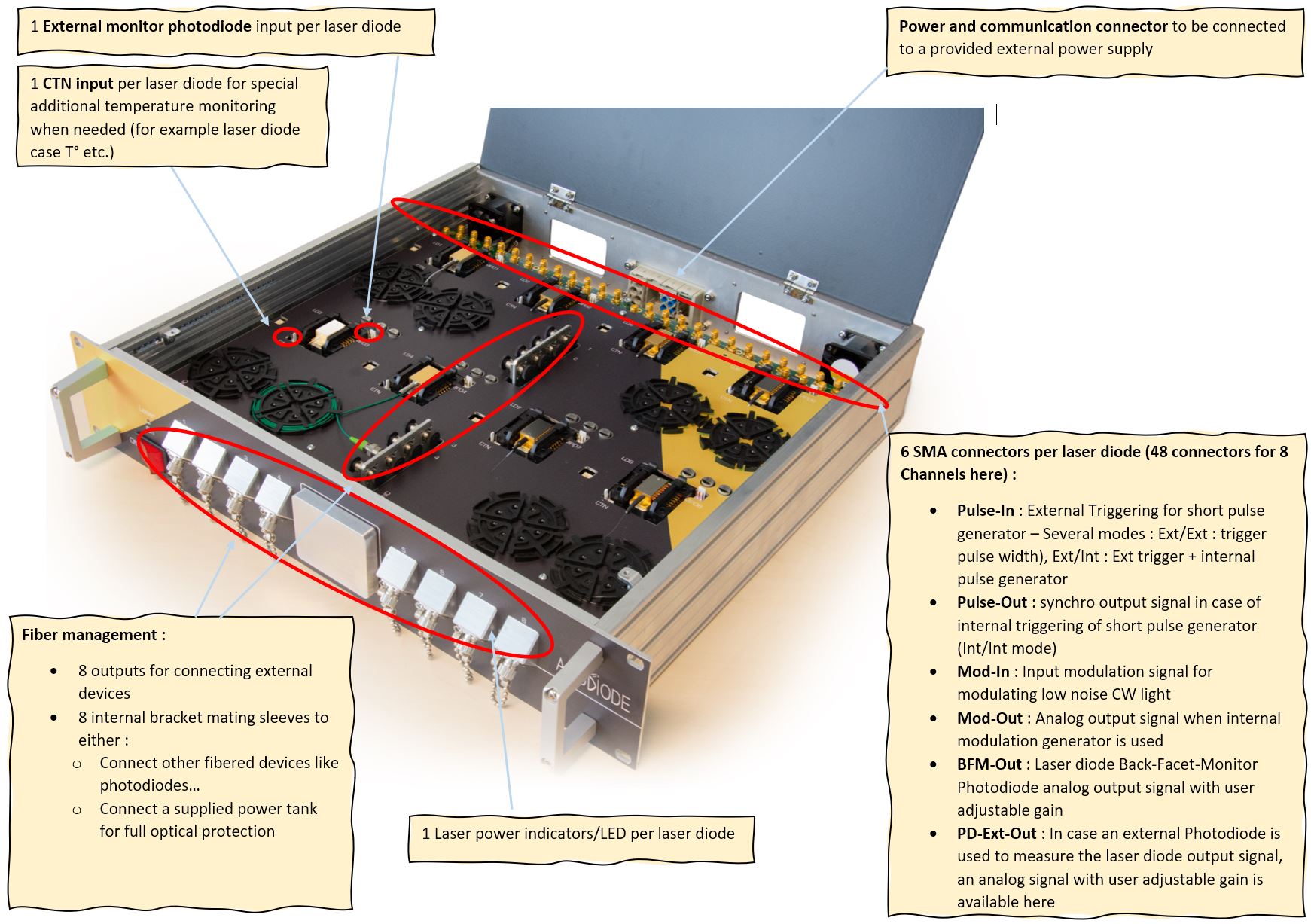

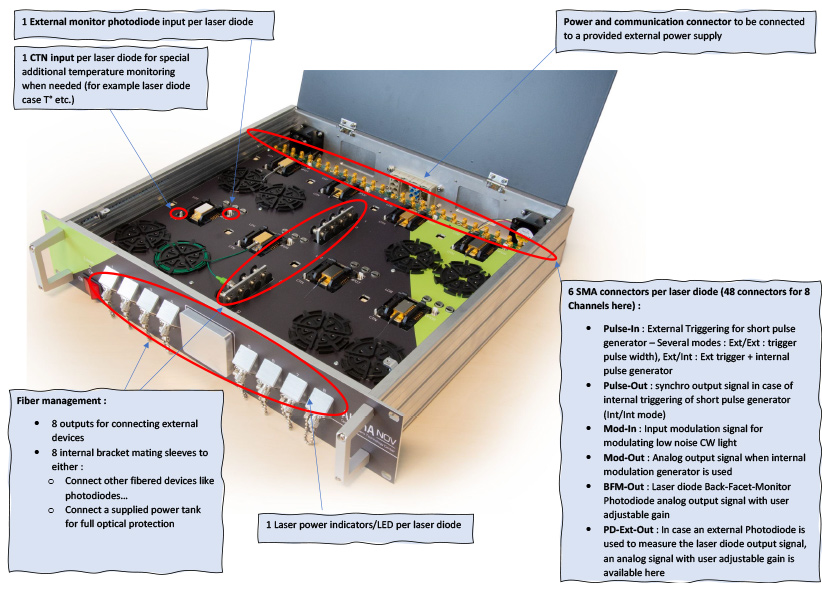

PIN configuration

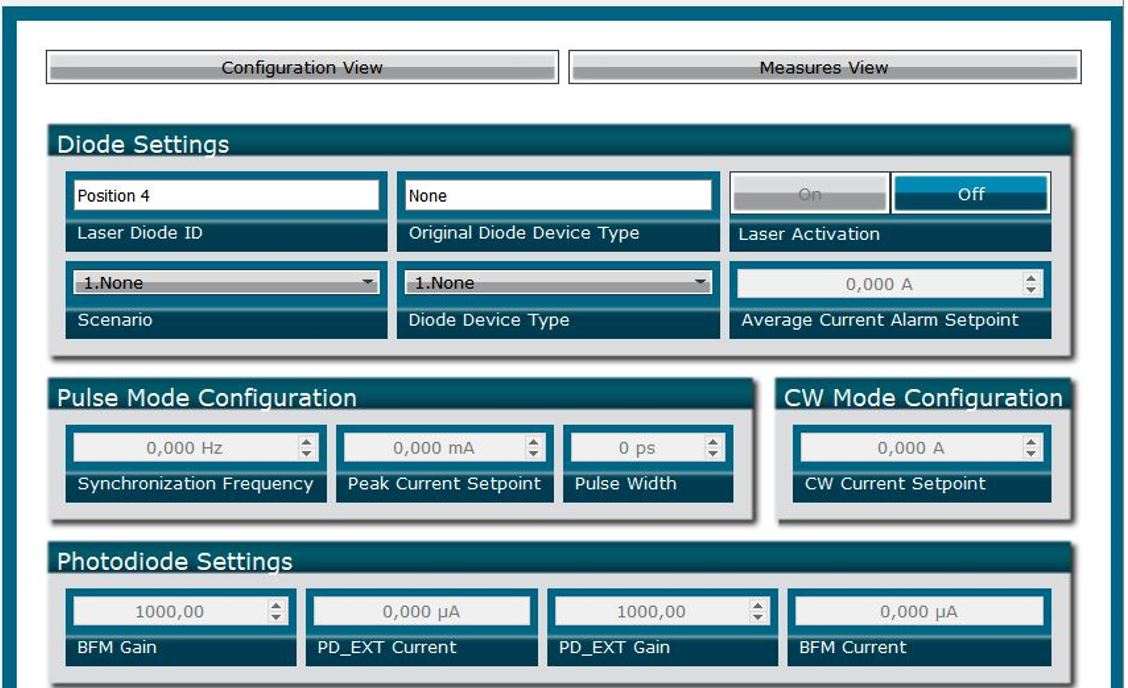

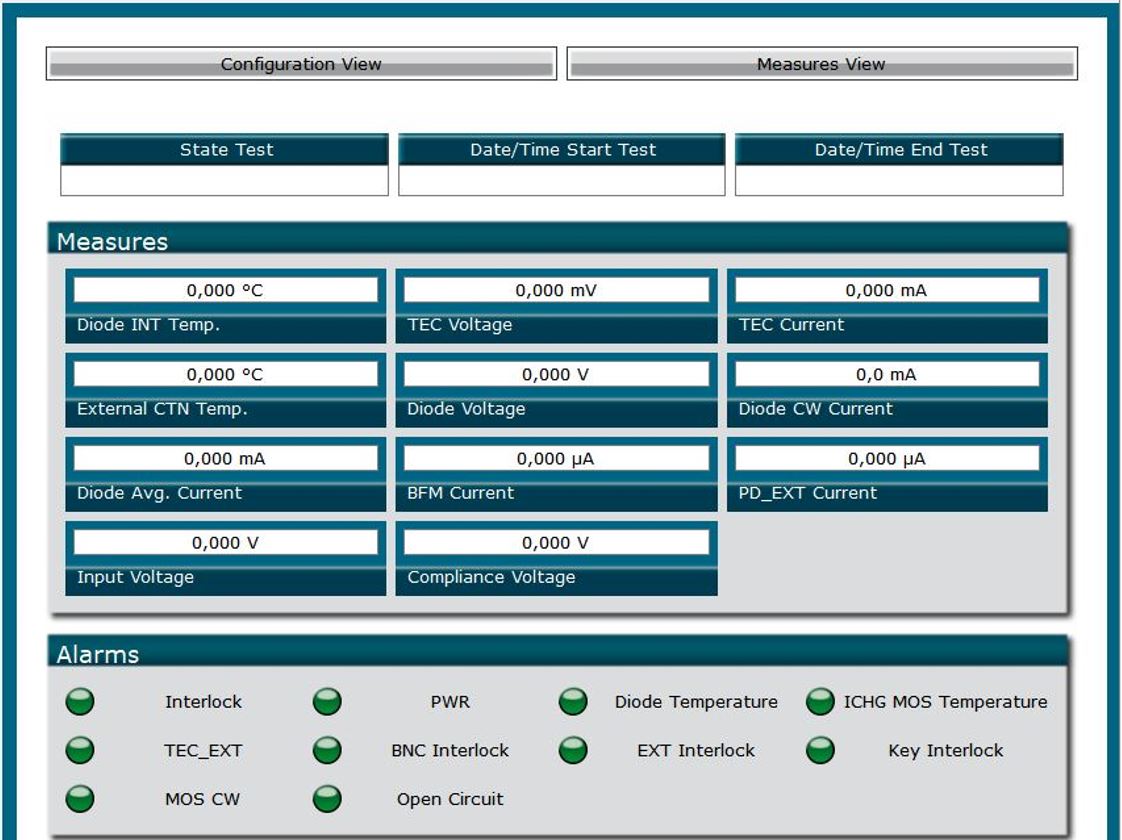

GUI interface
These products are now offered by AeroDIODE, a new ALPhANOV spin-off company.
