High power laser diode driver up to 36 V - 21 A with TEC & air cooling
This high power laser diode driver is comptible with all multimode fiber coupled multi-emitter pump laser diodes from II-VI, BWT, nLight, Lumentum, IPG, Dilas etc.
It is a low noise complete solution with 36 V-20 A laser driver, TEC controller and air cooling fan regulation. TEC and CTN elements are provided and adapted for any customer need, for single or multiple laser diode driving. This high power laser diode driver delivers precision CW or pulses which are generated internally by an on-board pulse generator, or on demand from an external analog modulation signal.
It is the most compact device with such performances and this makes it an ideal tool for R&D Labs or OEM integration into your product.
These products are now offered by AeroDIODE,
a new ALPhANOV spin-off company. The product manager is available to answer any technical of commercial question.
Product reference: CCM
Key features
- Compatible with multiple elements laser diodes like II-VI, BWT, NLight, IPG, Lumentum, Dilas etc
- Drives laser diodes up to 36 V - 21 A
- Ultra-stable laser power for short and long term operation
- Up to 200 W CW power with new generation laser diodes
- Max modulation frequency : up to 100 kHz
- Highly efficient (> 80 % from plug)
- Smart control (USB interface to drive simultaneously several modules from ALPhANOV’s laser electronics series)
The GUI software lets the user have total control of all module functions. It includes several libraries for software integration (Labview VIs, DLLs, Hexa etc.).
Datasheet
CCM high power laser diode driver is part of our "Multiboard" laser driver and synchronization modules family. It works alone or in series with other products like:
- Pulsed laser diode driver
- Fiber laser diode driver
- 808 nm laser diode
- 976 nm laser diode
- 1064 nm laser diode
- 1550 nm laser diode
- Fiber optic modulator
- SOA pulsed driver
- Digital delay generator
- Pulse picker
- Fiber coupled acousto-optic modulator
Complex systems, such as fiber lasers, can be quickly developed on this module platform.
Several laser diode can be driven simultaneously:
Specifications:
| High power laser diode driver | CCM | New: CCM-HP |
|---|---|---|
| Laser driver | ||
| Laser diode current range | 0 - 15 A | 0 - 21 A |
| Laser diode voltage range | 0 - 24 V | 0 - 36 V |
| Laser diode power output | 150 W | 200 W |
| Current level precision | 0.05 A | |
| Current level stability | <0,05 % | |
| Modulation rate | 10 µs / 100 kHz | |
| Temperature controller | ||
| Laser diode temperature range | 15 - 40 °C | |
| Temperature stability | 10 mK | |
| Comptabilities & libraries | Windows XP/7/10 ; DLLs ; Hexa ; Labview VIs | |

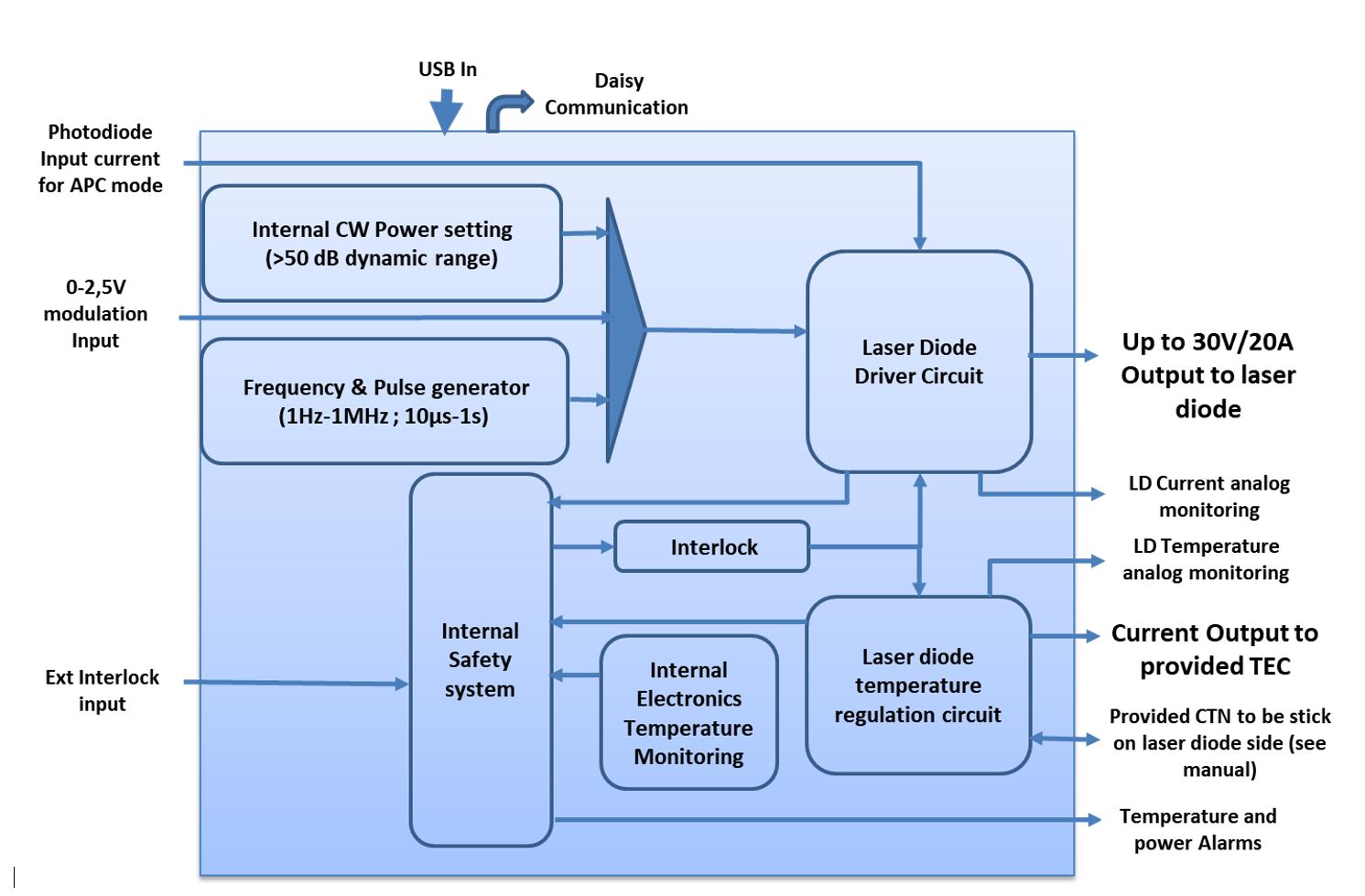

Synoptic
PIN configuration
Applications
- Fiber laser pumping
- Nondestructive control
